Space-Based Architecture

Software architecture

Space-based architecture is a software design pattern designed to address scalability and high availability in distributed systems. It is particularly suited for systems that experience high and unpredictable loads, as it helps eliminate bottlenecks that arise in traditional systems due to centralized databases and resource constraints. The architecture derives its name from the idea of a "space", where data and processing logic are distributed across multiple nodes, creating a grid-like structure.

---

---

In space-based architecture, the goal is to distribute both the data and processing workload across multiple nodes to ensure that no single point of failure exists and that the system can scale horizontally as demand increases. This approach is commonly used in systems that require real-time processing, such as financial trading platforms, e-commerce systems, and high-traffic websites.

---

---

Key Characteristics of Space-Based Architecture

The core characteristic of space-based architecture is data and processing distribution. In this architecture, data is distributed across multiple nodes (or spaces), with each node responsible for managing part of the system's data and processing workload. The system does not rely on a centralized database; instead, data is stored in memory across the grid, allowing for fast access and reduced latency.

Another key characteristic is shared-nothing architecture, where nodes are fully independent of each other. Each node manages its own resources (memory, CPU, etc.) and does not rely on other nodes for data or processing. This isolation ensures that nodes can be added or removed without affecting the overall system's availability or performance, allowing for horizontal scalability.

In-memory data storage is a crucial feature of space-based architecture. Instead of relying on disk-based storage, the architecture uses memory for storing data, leading to significantly faster read and write operations. This is particularly useful for applications where real-time data access is critical, such as financial systems or real-time analytics platforms.

Another defining characteristic is partitioning and replication. Data is partitioned across multiple nodes, with each node responsible for a subset of the data. To ensure high availability, the architecture replicates data across nodes, so that if one node fails, other nodes can continue processing with minimal disruption.

Common Components in Space-Based Architecture

Space-based architecture typically consists of the following key components:

1. Processing Units: These are the core units of computation, responsible for processing requests and business logic. Processing units operate independently and in parallel across the distributed nodes, allowing for greater scalability. Each processing unit handles a portion of the overall system's workload, and additional processing units can be added dynamically as needed.

2. Data Grid (or Space): The data grid, also known as the space, is where data is stored in memory and distributed across multiple nodes. The data grid ensures that data is partitioned and replicated across the system, providing fast access to data and ensuring high availability.

3. Messaging Grid: In space-based architecture, the messaging grid facilitates communication between nodes and processing units. It ensures that requests are routed to the appropriate processing unit and that nodes can communicate asynchronously. This grid-based messaging approach helps avoid bottlenecks and improves system throughput.

4. Replication Manager: The replication manager is responsible for maintaining copies of the data across multiple nodes. In the event of a node failure, the replication manager ensures that another node takes over seamlessly without data loss. Replication strategies can vary, but most involve maintaining multiple copies of critical data across different nodes.

5. Failover and Recovery Mechanism: Space-based architecture includes a built-in failover mechanism that ensures that when a node goes down, another node takes over its responsibilities. This mechanism guarantees that the system continues functioning with minimal downtime, making the architecture highly resilient.

Advantages of Space-Based Architecture

One of the key advantages of space-based architecture is scalability. The architecture is designed to scale horizontally by adding more nodes or processing units as demand increases. Since there is no central database or bottleneck, the system can handle large volumes of traffic without performance degradation. This makes it ideal for systems that experience unpredictable traffic spikes, such as e-commerce websites during sales or social media platforms during major events.

Another significant advantage is fault tolerance. Because data is replicated across multiple nodes, the system is resilient to node failures. If one node goes down, another node can take over without any data loss or system downtime. This ensures high availability, which is critical for systems that require continuous operation, such as financial systems or real-time analytics platforms.

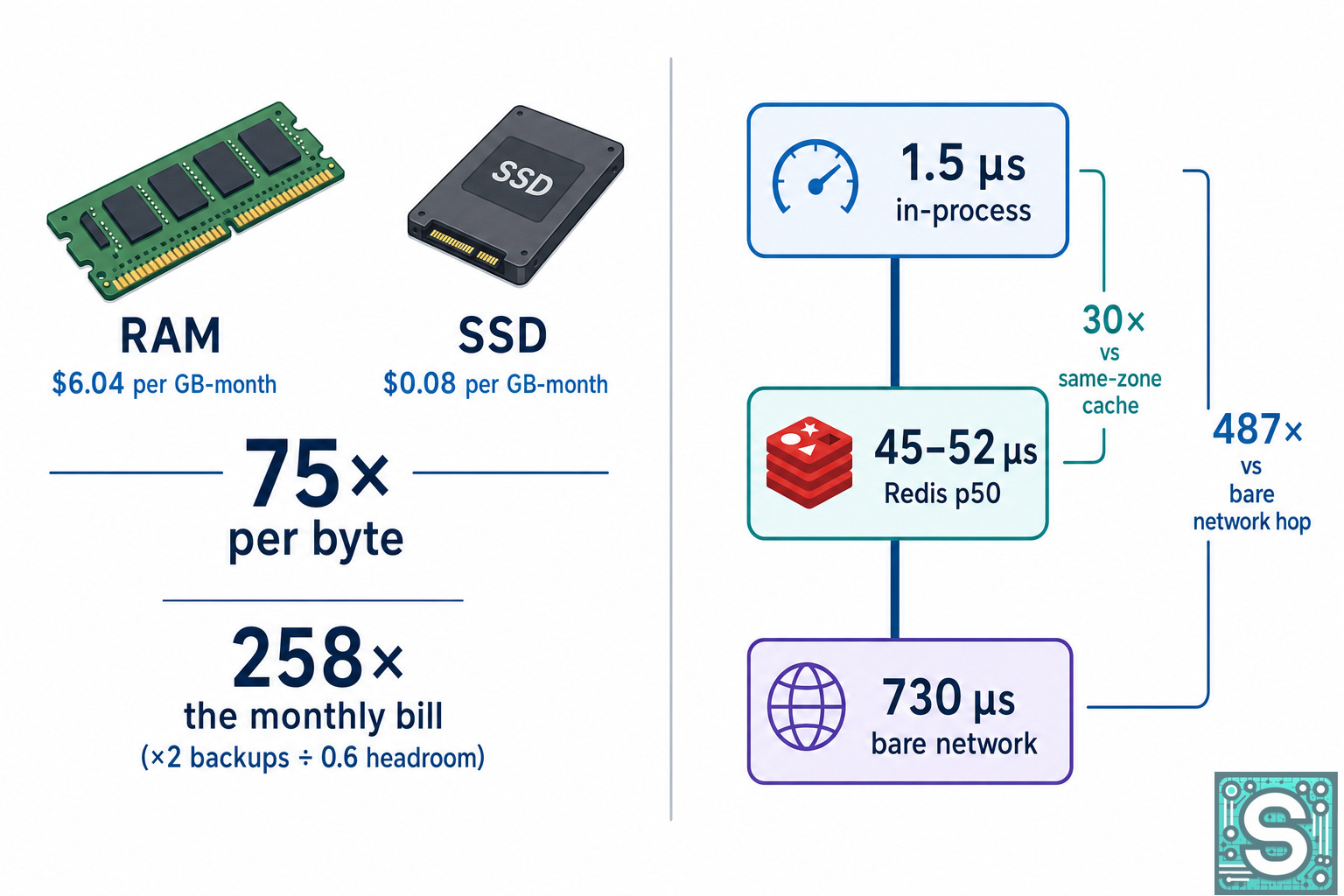

Low latency is another benefit of space-based architecture, especially due to the use of in-memory data storage. By storing data in memory and distributing it across nodes, the system can provide near-instantaneous access to data, making it ideal for real-time applications. Additionally, the use of a messaging grid allows for fast, asynchronous communication between components, further reducing latency.

Finally, elasticity is a core advantage of space-based architecture. Nodes can be dynamically added or removed based on the system's current needs, allowing the architecture to adapt to changing workloads. This flexibility ensures that resources are used efficiently, and the system can scale up or down depending on traffic or processing requirements.

Disadvantages of Space-Based Architecture

Despite its many advantages, space-based architecture also has some drawbacks. One of the main challenges is complexity. Designing and maintaining a distributed system with partitioned and replicated data requires careful planning, especially around data consistency and synchronization between nodes. Managing the replication of data and ensuring that all nodes have the correct, up-to-date information can be difficult, particularly in large-scale systems.

Another challenge is memory constraints. Since space-based architecture relies on in-memory data storage, the amount of data that can be stored is limited by the memory available on each node. This can become a problem if the system needs to handle large datasets. To mitigate this, developers often implement strategies to offload less frequently accessed data to disk-based storage or use hybrid approaches that combine in-memory and disk storage.

Coordination and consistency can also be challenging in space-based systems. Ensuring that data remains consistent across all nodes while maintaining high performance and availability requires careful handling of replication and synchronization processes. In systems that require strong consistency, managing data across distributed nodes may introduce performance trade-offs or increased complexity.

Finally, cost can be a concern, especially in large-scale deployments. Since space-based architecture relies on maintaining data in memory across multiple nodes, it can require substantial hardware resources or cloud infrastructure. This makes it more expensive to operate compared to architectures that rely on disk-based storage or less distributed systems.

Architecture Quanta in Space-Based Architecture

In this architecture, the number of quanta can vary depending on how the system is designed.

Each processing unit in the space-based system can be treated as an individual quantum because it operates independently and can be deployed or scaled separately from other components. These units interact with the data grid and perform specific tasks, allowing them to function autonomously within the distributed system. Additionally, since the data grid is partitioned, each partition can also act as its own quantum, contributing to the overall scalability of the system.

However, since space-based architecture often relies on a shared data grid and messaging infrastructure, some degree of coupling exists between components. This means that while individual processing units and partitions can be scaled and deployed independently, they are still part of a larger, interconnected system. Therefore, the architecture can support multiple quanta, but the system's design ensures that these quanta work in harmony to provide a unified service.

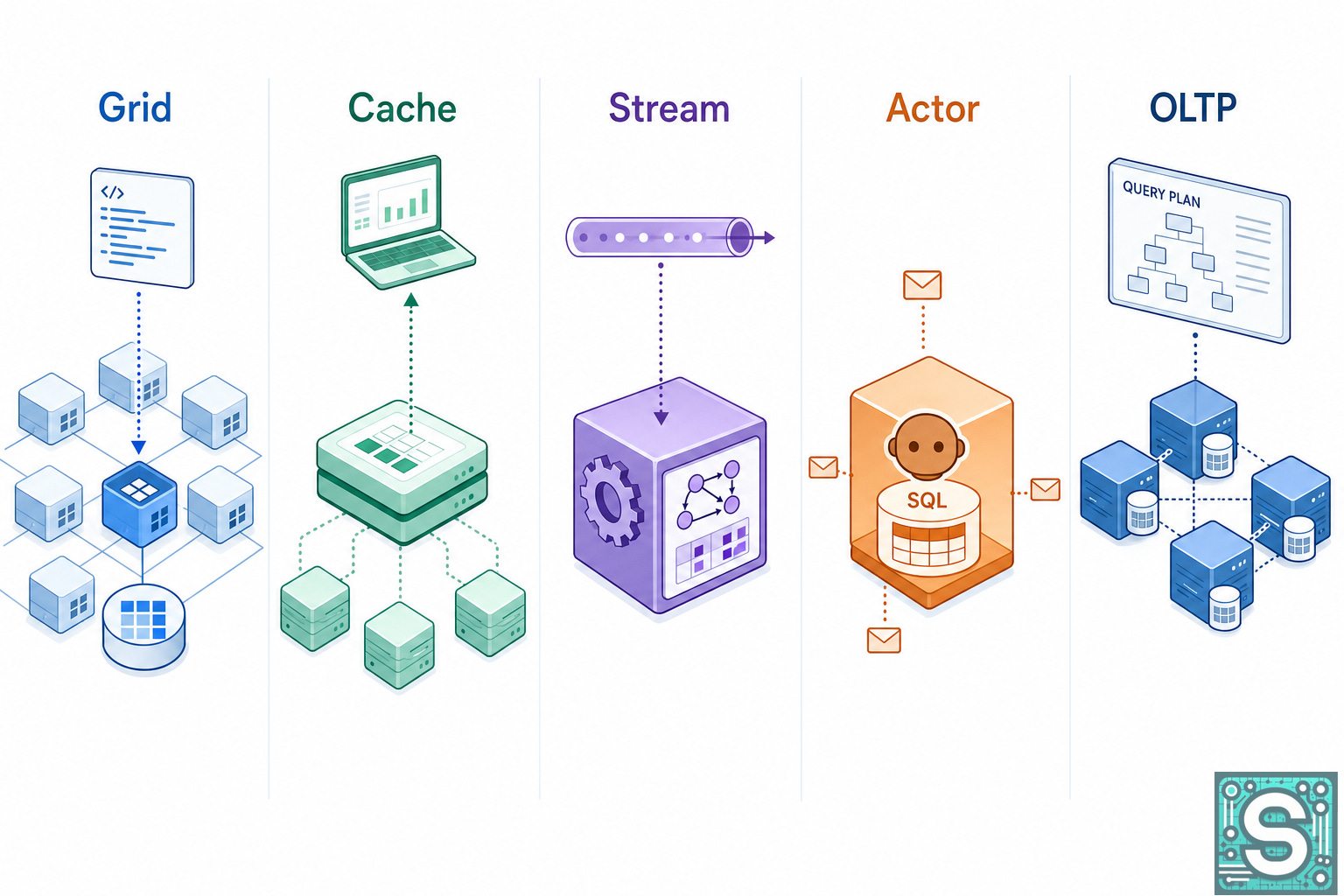

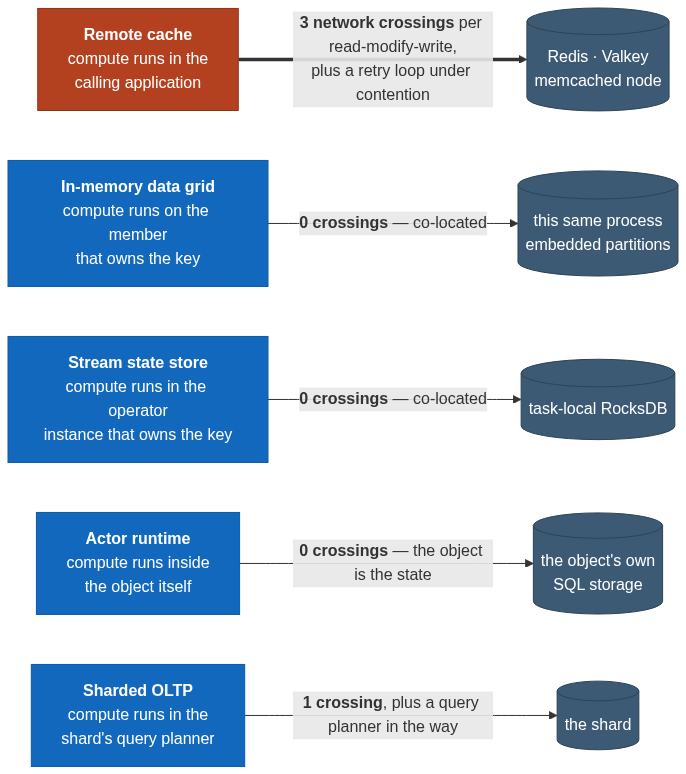

Variants of Space-Based Architecture

Several variants of space-based architecture have been developed to suit different use cases:

1. In-Memory Data Grids (IMDGs): Systems like Hazelcast or Apache Ignite implement in-memory data grids where data is distributed and stored across nodes in memory. These systems focus on providing high-performance access to data by keeping it in memory, reducing latency for data-intensive applications.

2. Distributed Caching: A variant of space-based architecture is distributed caching, where frequently accessed data is cached across multiple nodes to improve performance. Solutions like Redis or Memcached implement this architecture to provide fast data access in high-traffic systems.

3. Hybrid Space-Based Architecture: In some implementations, space-based systems combine in-memory storage with persistent storage. Less critical or less frequently accessed data is stored on disk, while essential data is kept in memory for fast access. This hybrid approach balances the need for speed and data persistence.

Summary

Space-based architecture is particularly well-suited for systems that experience high and unpredictable traffic. This includes e-commerce platforms, social media applications, and online gaming systems, where traffic can spike suddenly and unpredictably. The architecture's ability to scale dynamically and handle large loads makes it ideal for these scenarios.

It is also a strong choice for real-time processing systems, such as financial trading platforms, IoT applications, or real-time analytics systems, where low-latency data access and processing are critical. The in-memory data storage and distributed processing units ensure that data can be accessed and processed quickly.

Additionally, space-based architecture is a good fit for applications that require high availability and fault tolerance. Systems that cannot afford downtime- such as critical financial or healthcare systems- can benefit from the architecture's resilience to node failures and its ability to continue functioning even when parts of the system go down.
