Software architecture styles

Software architecture

Have you ever tried fixing one bug, only to find yourself entangled in a web of new issues? Have you felt that each quick patch only seems to deepen the chaos, or that navigating the codebase feels like wandering through an endless maze?

If so, you might be dealing with what's known as a Big Ball of Mud—a term for software systems where architecture is practically nonexistent, and the structure is defined by disorder rather than design. In these cases, code dependencies twist unpredictably, modularity is absent, and documentation is often missing or outdated. Technical debt seems to grow faster than it can be paid off, as changes are made to address immediate needs rather than following a coherent architectural plan. While the system may deliver rapid results, the lack of any structured foundation turns it into a developer's nightmare, requiring enormous effort to maintain or extend.

Building on the concept of a Big Ball of Mud, where a system lacks any coherent organization, we can better appreciate the importance of having a well-defined architecture in software design. An architecture provides a structured approach to organizing a system’s components, specifying how they should interact and communicate. Within this context, an architecture style serves as a set of guiding principles or patterns that dictate the overall structure and behavior of a system. It acts like a blueprint, helping developers choose how to arrange elements and establish rules for component interactions. By adopting an architecture style, teams can systematically address performance, scalability, and maintainability challenges, ensuring that the software is built on a foundation that aligns with technical and business goals rather than descending into disorganized chaos.

Different architecture styles offer distinct approaches to organizing software systems, each with its own strengths and trade-offs that make it suitable for particular scenarios. Exploring these styles further reveals how they can be combined, adapted, or evolved to meet specific requirements, offering a deeper understanding of how software architecture influences the success of a project.

Monolithic versus distributed system

The journey from monolithic to distributed systems reflects the growing complexity of software applications and the need for better scalability, maintainability, and flexibility. In the early days of computing, monolithic architectures were the default approach. These systems consisted of a single, unified codebase that integrated all components—user interface, business logic, and data storage—into one cohesive unit. At a time when applications were smaller and ran on a single machine, this approach offered simplicity in development, testing, and deployment. However, as applications expanded, the architectural quantum—the smallest unit of functionality that can be independently deployed or changed—was large and difficult to manage, making even minor modifications affect the entire system. This lack of modularity hindered scalability and adaptability as the system grew.

With the rise of large-scale web applications and the increasing need for scalable solutions, the limitations of monolithic systems became evident. As the architectural quantum in a monolithic system is the entire application, scaling the system led to inefficiencies in resource usage and performance bottlenecks. The inability to scale individual components independently forced developers to seek new architectural solutions, giving rise to distributed systems.

In contrast, distributed systems break the application into smaller, loosely coupled components or services, each with its own architectural quantum. These services can be developed, deployed, and scaled independently, addressing the flexibility and scalability issues that monolithic systems face. The introduction of service-oriented architecture (SOA) and microservices architecture marked a significant shift toward smaller quanta, where each service becomes an independently manageable unit, enabling applications to evolve more easily without affecting the entire system. The evolution of cloud computing further empowered distributed systems by allowing horizontal scaling—adding more instances of a service as needed—without duplicating the entire application.

While distributed systems offer flexibility and scalability, they introduce new challenges such as managing communication between services, maintaining data consistency, and orchestrating deployments across multiple nodes. These systems require careful design to ensure that the smaller architectural quanta remain well-coordinated and function as a cohesive whole, despite being physically distributed across different servers or even geographical locations.

Ultimately, the choice between monolithic and distributed architectures depends on the needs of the application. Monolithic architectures still work well for smaller projects where simplicity is key, while distributed systems have become the preferred solution for large-scale, dynamic applications that require the ability to scale and adapt quickly.

Monolithic architectures

Monolithic systems, as one of the most foundational architectural styles, represent a single, cohesive unit where all application components—from the user interface to the database—are tightly integrated and deployed together. This simplicity offers advantages during initial development and deployment, but as systems grow in size and complexity, managing such architectures becomes increasingly challenging. However, not all monolithic systems are built the same way. Depending on factors like team structure, scalability needs, and the technologies in use, various approaches to monolithic design have emerged, each with its own benefits and drawbacks. We'll explore these different monolithic architecture styles and how they cater to evolving development needs.

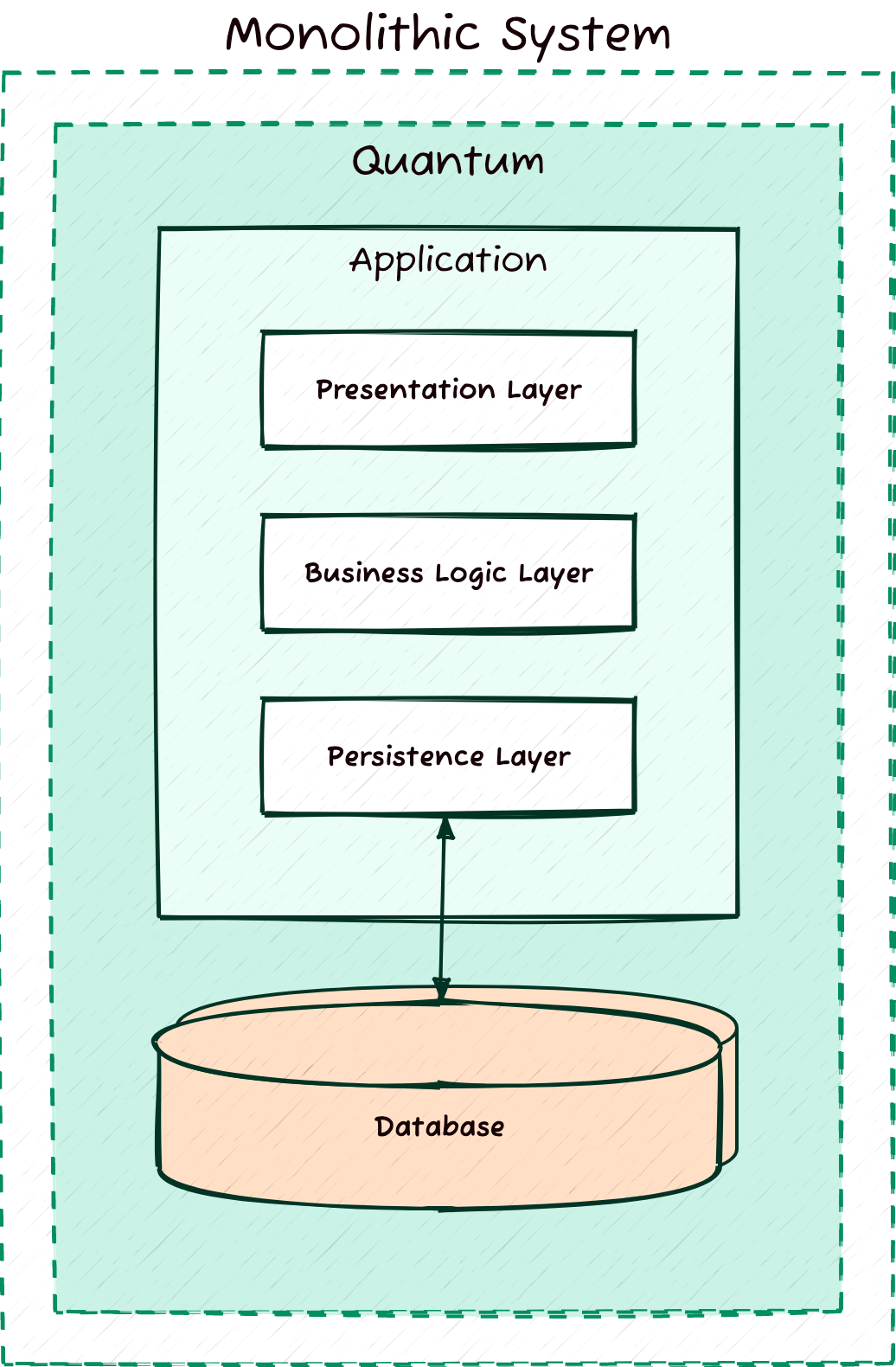

Layered architecture

Layered architecture is one of the most commonly used architectural styles in software development. It organizes a system into a hierarchy of layers, each responsible for a specific part of the application. The main goal of this approach is to achieve a clear separation of concerns, where each layer focuses on a particular function, making the system easier to develop, maintain, and scale. Layered architecture is especially prevalent in enterprise and web applications, where complexity requires well-structured modularity and maintainability.

Key Characteristics of Layered Architecture

Layered architecture is built around the principle of separating responsibilities into distinct layers. Each layer serves a unique function and typically interacts only with the layer directly above or below it. This promotes modularity and encapsulation, where each layer is responsible for a specific concern and can evolve independently as long as its interface remains unchanged.

One of the defining characteristics of this architecture is hierarchical communication, where each layer passes data and requests sequentially from one to another. For example, the Presentation Layer communicates with the Business Logic Layer, which in turn interacts with the Persistence Layer. This controlled communication structure ensures that different parts of the system do not mix their concerns, keeping the design clean and organized.

Another key feature is encapsulation. Each layer hides its internal implementation details from the others, exposing only a well-defined interface. This makes it easier to maintain and update individual layers without affecting other parts of the system. The separation of layers also encourages reuse, as developers can easily reuse entire layers, such as the Business Logic or Persistence Layers, across different projects.

Common Layers in Layered Architecture

While the number and naming of layers can vary depending on the application, a typical layered architecture consists of the following three main layers.

1. Presentation Layer: This is the top layer that handles everything related to user interaction. It is responsible for rendering data, capturing user inputs, and displaying results. In web applications, the Presentation Layer includes technologies like HTML, CSS, JavaScript, or mobile front-end frameworks. The goal of this layer is to present data to the user and send user requests to the underlying layers.

2. Business Logic Layer: The core of the system resides in the Business Logic Layer. It contains all the application’s business rules, workflows, and logic that determine how data is processed and transformed. For example, in an e-commerce system, this layer would handle tasks like processing orders, applying discounts, or calculating tax. It takes requests from the Presentation Layer, processes them, and communicates with the Persistence Layer for data retrieval or storage.

3. Persistence Layer: The Persistence Layer is responsible for managing the system’s data. It handles data storage and retrieval, usually interacting with databases or external storage systems. This layer abstracts the complexities of data management, allowing the Business Logic Layer to focus on core logic without dealing with low-level database operations.

Advantages of Layered Architecture

One of the main advantages of layered architecture is its modularity, which makes it easier to develop, maintain, and test each layer independently. By isolating concerns in separate layers, teams can work on different parts of the system simultaneously, improving development efficiency. For example, front-end developers can focus on the Presentation Layer, while back-end developers work on the Business Logic and Persistence Layers.

Another advantage is separation of concerns, which simplifies maintenance. Since each layer has a single responsibility, changes in one part of the system don’t affect others. For example, changes in the database structure would only impact the Persistence Layer, leaving the Presentation and Business Logic Layers untouched.

Layered architecture also promotes reusability. Since each layer is designed to function independently, entire layers can be reused in different applications with minimal modifications. For example, the Business Logic Layer could be reused across different user interfaces, such as a web or mobile app, without changing the core functionality.

Furthermore, testability is improved because each layer can be tested in isolation. Developers can write unit tests for the Business Logic Layer without worrying about the user interface or the database, ensuring that business rules work as expected before integrating them with other layers.

Disadvantages of Layered Architecture

Despite its many benefits, layered architecture also has some limitations. One issue is performance overhead. Since requests and data must pass through multiple layers, this can introduce latency, especially in systems with many layers or in applications that require real-time performance. Each additional layer adds some overhead to the process, which may be undesirable in time-sensitive systems.

Another disadvantage is that layered architecture can become rigid as the system grows. While the separation of layers brings flexibility, it can also lead to tight coupling between layers if not properly designed. In some cases, developers may bypass layers, causing dependencies that violate the layered architecture principles and making it difficult to modify one layer without impacting others.

In smaller applications, the architecture may feel over-engineered. For simple projects, dividing the system into multiple layers can introduce unnecessary complexity, making it harder to maintain or modify than a simpler architecture would allow.

Architecture Quanta in Layered Architecture

When considering the concept of architecture quanta—the smallest independently deployable unit—in layered architecture, the system typically has a quantum of 1. This means that the entire application is deployed as a single unit, and changes in one layer often require redeploying the whole system. Although layers are logically separated, they are often tightly integrated into the same deployment, which limits the flexibility of updating individual layers independently.

In certain variations, such as N-tier architecture, layers can be deployed on different physical infrastructures (e.g., the Presentation Layer on a web server, the Business Logic Layer on an application server, and the Persistence Layer on a database server). However, even in this scenario, the logical quantum often remains unified, meaning changes in one layer necessitate redeployment of the entire system. This contrasts with more modular architectures, such as microservices, where individual components are independently deployable.

Variants of Layered Architecture

There are several variations of layered architecture that adapt to specific requirements. One common variant is N-tier architecture, where each layer is deployed on separate servers or tiers, providing more scalability and security. For example, the Presentation Layer might run on a web server, while the Business Logic Layer operates on a separate application server. This physical separation allows for independent scaling of each tier.

Another variation is Hexagonal Architecture (also known as "Ports and Adapters"), which isolates the Business Logic Layer at the core of the system and defines interfaces for interacting with external systems, such as user interfaces or databases. This approach further decouples the core logic from external dependencies, allowing greater flexibility and testability.

A similar approach is Onion Architecture, where the core business entities and rules reside at the center, and other layers such as data access and user interface surround it. This design emphasizes the importance of isolating business logic from external systems, ensuring that changes in those systems do not impact the core application logic.

When to Use Layered Architecture

Layered architecture is best suited for applications that require a clear separation of concerns and long-term maintainability. It works well in systems where the user interface, business logic, and data management need to be kept independent from each other, making it easier to manage and scale as the system evolves.

This architecture is particularly useful in large, enterprise-level applications, web applications using MVC (Model-View-Controller), and systems where different teams are responsible for different parts of the system (e.g., front-end and back-end development teams). It is also a good choice when there is a need for clear boundaries between layers to facilitate independent development, testing, and scaling of each component.

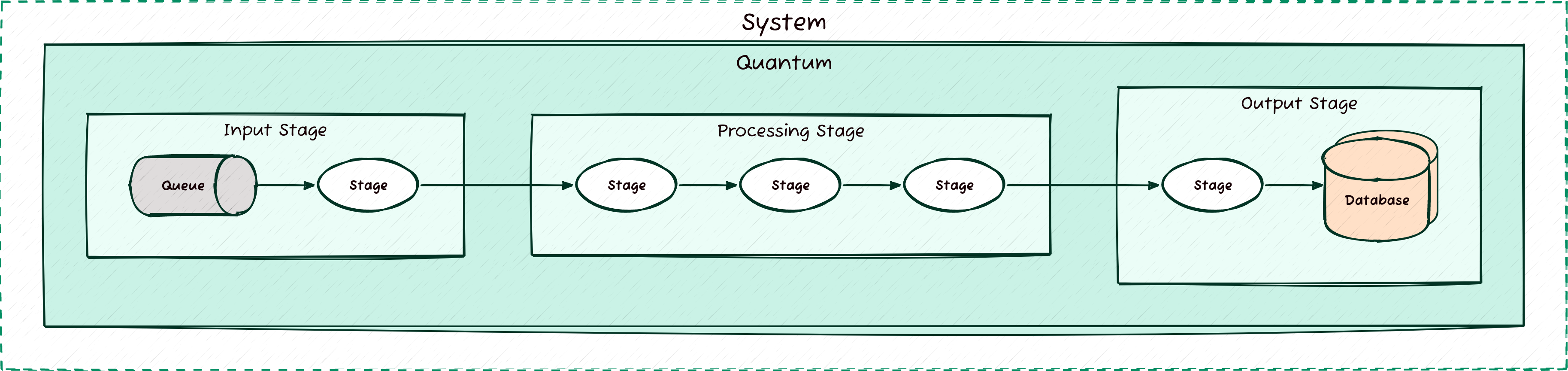

Pipeline architecture

Pipeline architecture is an architectural style commonly used to process data or tasks in a sequential manner. In this approach, a system is divided into a series of processing steps, or "stages," where each stage is responsible for a specific function. These stages are connected in a linear or near-linear sequence, with each stage taking input from the previous one, processing it, and passing the result to the next. The primary goal of this architecture is to enable the efficient flow of data through the system while breaking down complex processes into smaller, manageable tasks.

Key Characteristics of Pipeline Architecture

Pipeline architecture focuses on processing data in stages, where each stage operates independently of the others but is tightly connected to the adjacent stages. One of the main benefits of this approach is that it provides modularity, allowing each stage to focus on a single aspect of the task or process. This modularity also enables easier debugging, testing, and maintenance, as each stage can be worked on in isolation. Additionally, because the system is broken down into independent stages, it's possible to scale individual stages based on their performance requirements or bottlenecks.

Another characteristic of pipeline architecture is that it encourages a data flow model, where the system is designed around the movement of data through the pipeline. Each stage takes input from its predecessor, processes it according to a specific function, and passes the output along to the next stage. This flow-based model makes it easier to track the movement of data, monitor performance, and identify where optimizations may be needed.

Common Stages in Pipeline Architecture

Although pipeline architectures can vary greatly depending on the system and its specific needs, a typical pipeline might include the following stages.

1. Input Stage: The first stage is responsible for receiving data or tasks from external sources. This could involve reading data from a file, accepting user input, or receiving messages from an external system.

2. Processing Stages: In the middle of the pipeline, one or more stages process the data, transforming it step-by-step. Each stage applies a specific operation, such as data validation, formatting, aggregation, or computation. In data processing pipelines, these stages might include filtering, sorting, or cleaning the input.

3. Output Stage: The final stage in the pipeline is responsible for producing output, such as writing the processed data to a database, sending a response to the user, or triggering further actions in other systems. The output stage marks the end of the linear pipeline.

Advantages of Pipeline Architecture

One of the major advantages of pipeline architecture is its scalability. Each stage in the pipeline can be scaled independently based on the performance needs of the system. If one stage becomes a bottleneck, it can be optimized, parallelized, or replicated without affecting the other stages. This flexibility allows the system to handle larger workloads and adapt to growing demands.

Pipeline architecture also promotes modularity and maintainability. By breaking the system into discrete stages, developers can focus on the functionality of each part independently. This makes it easier to add new features, fix bugs, or improve performance without affecting the entire system. Additionally, pipelines are easy to extend; new stages can be added to the pipeline with minimal impact on existing ones, making the architecture highly adaptable.

Another benefit is improved fault isolation. If a stage in the pipeline fails, it can be identified and addressed without disrupting the entire system. This isolation allows for better error handling and recovery mechanisms, enhancing the system's resilience.

Disadvantages of Pipeline Architecture

Despite its advantages, pipeline architecture has some drawbacks. One challenge is latency. Since data must pass through multiple stages before producing an output, there can be delays in processing, especially in long pipelines with many stages. This latency can be problematic in real-time systems or applications that require immediate responses.

Another disadvantage is that the architecture can become rigid if the stages are tightly coupled. While each stage is designed to be independent, improper design can lead to dependencies between stages, making it difficult to modify one stage without affecting others. This can limit the flexibility of the architecture and make it harder to adapt to changing requirements.

Additionally, pipeline architecture can introduce performance bottlenecks if one stage takes significantly longer to process than the others. In such cases, the overall performance of the system will be limited by the slowest stage, requiring optimization of individual stages to avoid throughput issues.

Architecture Quanta in Pipeline Architecture

When considering architecture quanta pipeline architecture can be more granular than monolithic systems but often less granular than fully distributed systems like microservices. Each stage in the pipeline represents a potential quantum, meaning it could be developed, tested, and deployed independently, depending on the implementation. In some pipeline architectures, each stage can be deployed as a separate service or component, allowing the system to have multiple quanta, with each stage acting as its own quantum.

However, in many cases, pipeline stages are tightly integrated into a single system, resulting in a quantum of 1. This means that the entire pipeline is deployed as a unit, and changes in one stage require redeploying the whole system. The degree of independence between stages depends on the system's design and the level of separation between the stages.

Variants of Pipeline Architecture

Pipeline architecture is adaptable to different contexts and can take various forms based on system requirements. For example, batch processing pipelines are commonly used in data-heavy applications, where large datasets are processed in stages over time. Each stage performs an operation on a batch of data before passing it to the next stage. Batch pipelines are often used in data processing systems, such as ETL (Extract, Transform, Load) workflows.

Another variant is the stream processing pipeline, which processes data in real time. Instead of waiting for a complete batch of data, stream pipelines operate continuously, processing data as it arrives. This type of pipeline is common in systems that require real-time analytics or event-driven processing, such as monitoring systems or recommendation engines.

Event-driven pipelines are also a common variant, where stages are triggered by events rather than the continuous flow of data. In this model, each stage reacts to specific events, processes them, and triggers further events for subsequent stages. This is frequently seen in systems that deal with workflows or user interactions, such as order processing in e-commerce.

When to Use Pipeline Architecture

Pipeline architecture is well-suited for systems where data or tasks need to be processed sequentially. It's ideal for applications where the process can be broken down into discrete stages that operate independently but contribute to an overall task. Examples include data processing systems, image or video rendering workflows, and continuous integration/continuous deployment (CI/CD) pipelines.

This architecture is particularly valuable when scalability is a concern, as each stage can be optimized and scaled separately. Additionally, it's useful in situations where fault isolation is important, as each stage can handle errors without affecting the rest of the pipeline.

Microkernel architecture

Microkernel architecture is a design pattern often used in systems that require a stable, minimal core and the ability to extend or customize functionality through independent modules called plug-ins. The central idea is to keep the core system (the kernel) as lightweight as possible, handling only essential services, while allowing additional features to be added as needed via plug-ins. This separation allows for flexibility and extensibility, particularly in systems that need to evolve or adapt over time, such as operating systems or modular software platforms.

Key Characteristics of Microkernel Architecture

At its heart, the microkernel provides a minimal set of core services, such as resource management, communication between components, and basic system tasks. The kernel handles low-level operations and acts as the central controller, ensuring that all communication between components flows through it. This means the system remains stable and secure because the kernel governs how plug-ins interact with the core and with each other.

Plug-ins or extensions are modular components that add extra functionality to the system. These plug-ins can be loaded, modified, or removed without disrupting the kernel. They interact with the core kernel through well-defined interfaces, which ensures that the core remains stable while plug-ins extend the system’s capabilities. This structure is particularly useful for systems that need to be customized or adapted to different environments or use cases.

The microkernel architecture emphasizes modularity and separation of concerns. The kernel focuses on essential functions, while the plug-ins provide higher-level or specialized features. This separation allows for the independent development of plug-ins, making the system easier to extend or modify over time.

Common Components in Microkernel Architecture

In microkernel architecture, the system is divided into two main components: the kernel and the plug-ins.

1. Kernel: The kernel is responsible for the most fundamental system operations, such as managing resources, communication between components, and basic system functionality. In operating systems, for example, the kernel manages memory allocation and scheduling of processes. The design principle for the kernel is minimalism, focusing only on core tasks to ensure stability and reliability.

2. Plug-ins/Extensions: Plug-ins or extensions provide additional functionality on top of the kernel. These components can be loaded or unloaded as needed, allowing the system to adapt to different requirements. For example, in operating systems, plug-ins might include file systems, device drivers, or network services. In business systems, plug-ins could handle features like reporting, customer management, or analytics. Plug-ins communicate with the kernel through defined APIs or messaging protocols.

Advantages of Microkernel Architecture

One of the main advantages of microkernel architecture is its extensibility. By separating the core system from the plug-ins, new features can be added or updated without impacting the stability of the kernel. This makes the system more adaptable to changing requirements over time. For example, in an operating system, new drivers or services can be added without modifying the core.

Another advantage is fault isolation. Since plug-ins are independent of the core kernel, failures in one plug-in do not necessarily bring down the entire system. The kernel continues to function, and only the faulty plug-in needs to be addressed. This improves overall system stability and resilience.

Maintainability is also a key benefit. The lightweight kernel is easier to test, debug, and maintain, and each plug-in can be developed and managed independently. This separation allows different teams to work on various parts of the system without interfering with each other, reducing the complexity of maintaining the entire system.

Disadvantages of Microkernel Architecture

Despite its advantages, microkernel architecture has some limitations. One of the main issues is performance overhead. Since all communication between plug-ins and the system must pass through the kernel, this can introduce latency and slow down the system, especially if plug-ins frequently interact with the kernel. Each interaction, whether a message or request, adds processing overhead, which can impact performance, particularly in real-time systems.

Another challenge is the complexity of designing plug-ins. Plug-ins must conform to the interfaces provided by the kernel, and poorly designed plug-ins can lead to inefficiencies or failures. Managing the dependencies between plug-ins can also become complex, especially as the number of plug-ins increases.

Architecture Quanta in Microkernel Architecture

Unlike some modular or distributed architectures, microkernel systems operate with a single quantum, as all requests and communication must pass through the kernel before reaching the plug-ins. The kernel acts as a centralized control point, meaning that even though plug-ins are independent and modular, they are not independently deployable. As a result, while the system remains highly modular in design, the deployable unit remains unified, with the kernel acting as the central controller for all functionality.

Variants of Microkernel Architecture

Microkernel architecture has several variations, particularly in its application across different types of systems:

1. Operating System Microkernels: Microkernel architecture is commonly used in operating systems. Examples include Mach and QNX, where the kernel manages only essential services, such as process scheduling and memory management, while other services, like file systems and device drivers, are handled by external modules or plug-ins. This approach improves security and stability while allowing for flexibility in adding new services.

2. Plug-in-Based Systems: Many modern software systems, such as IDEs (Integrated Development Environments) like Eclipse or IntelliJ IDEA, are built on microkernel architecture. These platforms provide a minimal core and allow third-party developers to create plug-ins that extend the system’s functionality. This architecture enables users to customize their environment by adding features based on their specific needs.

3. Enterprise Applications: In business systems, microkernel architecture is applied to allow the integration of various modules, such as accounting systems or customer management tools, as plug-ins. The core system remains stable while new business features are added or modified as needed.

When to Use Microkernel Architecture

Microkernel architecture is well-suited for systems that require extensibility and adaptability over time. It works particularly well in environments where the core functionality should remain stable while allowing for frequent changes, such as adding new services or features. This architecture is ideal for systems that need to support a wide range of plug-ins or third-party modules, such as operating systems, development platforms, or enterprise software solutions.

It is also a good fit for systems where fault isolation is important, as issues with one plug-in can be handled without affecting the entire system. Additionally, it’s a strong choice for systems that need to dynamically load or unload features based on user needs or resource constraints.

Distributed architectures

The shift from monolithic to distributed systems is an example of how software architecture evolves in response to technological advancements and business needs. In the early days, the simplicity of monolithic systems was sufficient, but as the scale and complexity of applications increased, the need for more modular, flexible architectures grew. Distributed systems, with their smaller architecture quanta, are better suited to modern demands for scalability, continuous deployment, and rapid feature iteration.

This evolution underscores a fundamental principle in architecture: as systems grow, the ability to decouple components and manage them independently becomes crucial. Monolithic systems, with their quantum of 1, struggle to meet the demands of large-scale, complex environments, whereas distributed systems, with their smaller, independent quanta, provide the flexibility needed to thrive in today’s fast-paced, cloud-based world.

Service-based architecture

Service-based architecture (SBA) is a modular software design approach that divides an application into loosely coupled services, each responsible for a distinct business capability. It offers more flexibility than a monolithic architecture, but typically involves larger, more business-focused services than microservices. Each service in SBA can be developed, deployed, and maintained independently, which allows teams to work autonomously and enables the system to scale more efficiently.

SBA is ideal for systems that need to grow and evolve over time, as it allows for the modularization of business functions. Services typically communicate via APIs, with an emphasis on reusability, scalability, and maintainability, making it a common choice for large-scale enterprise applications and cloud-native environments.

Key Characteristics of Service-Based Architecture

In service-based architecture, services represent distinct pieces of business functionality—such as order management, user authentication, or inventory control—and are loosely coupled. These services can be developed, deployed, and scaled independently, which simplifies maintenance and promotes autonomy for development teams.

One of the defining features of SBA is that it typically follows a domain-driven design approach, where services are aligned with specific business domains. Services communicate through well-defined APIs, ensuring clear boundaries between them. Services can vary in size but are generally larger and more comprehensive than microservices. While services may operate independently, they can still share common infrastructure components like databases or user interfaces, which can affect the architecture's quanta, as discussed below.

Common Components in Service-Based Architecture

1. Services: Each service is an independent module that handles a specific business function. These services encompass everything necessary to perform their tasks, including business logic, data access, and potentially integration with other services. For example, an e-commerce application might have services for managing customers, processing orders, and handling inventory.

2. Service Communication: Services communicate using APIs or messaging systems, often via HTTP-based RESTful APIs. Asynchronous communication using message queues (such as RabbitMQ or Kafka) may also be employed to decouple services and ensure scalability.

3. Shared or Independent Databases: While services can have their own databases, in some implementations, services may share a common database. This can impact how independently the services can be deployed or scaled. A shared database introduces tight coupling between services, whereas independent databases allow for true separation.

4. Service Registry/Discovery: In larger systems, a service registry or service discovery mechanism helps keep track of where services are running, especially in dynamic or cloud environments. This enables services to communicate and interact without being hardcoded into the system.

5. Shared User Interface (Optional): Some service-based architectures rely on a shared user interface, meaning multiple services present data to the user through the same front end. This can introduce coupling between services and the UI, which impacts the architecture's modularity.

Advantages of Service-Based Architecture

The primary advantage of SBA is scalability. Since each service operates independently, services can be scaled separately based on demand. For example, a product catalog service might require more instances to handle user requests, while other services remain unchanged. This approach improves resource efficiency and reduces operational costs.

SBA also facilitates modular development and deployment, enabling independent service releases and updates. Teams can work autonomously on different services without being slowed down by dependencies on other teams or services. This flexibility accelerates development cycles and allows organizations to respond quickly to changing business requirements.

Another significant advantage is fault isolation. If a service fails, it doesn't necessarily affect the entire system. For instance, if the payment service encounters an error, other services like the product catalog or customer authentication can continue functioning. This isolation enhances system resilience and reliability.

Reusability is another benefit. Common services, like authentication or logging, can be reused across multiple applications or parts of the system, reducing duplication and ensuring consistency.

Disadvantages of Service-Based Architecture

Despite its benefits, SBA introduces complexity in managing multiple services. As the number of services grows, deployment coordination, monitoring, and troubleshooting can become challenging. Inter-service communication can also be complicated, especially if services rely heavily on synchronous API calls, which can introduce latency or cascading failures.

Another challenge is data consistency. Services may have independent databases, making it harder to maintain transactional consistency across services. Traditional database transactions don’t work across distributed systems, so techniques like event-driven architectures or eventual consistency models must be used, adding complexity.

SBA can also introduce network overhead. Since services communicate over a network, there’s additional latency compared to a monolithic system where components interact within the same process. This overhead can affect performance, especially in systems requiring low-latency, high-throughput communication.

Architecture Quanta in Service-Based Architecture

The number of quanta in SBA can vary based on how services are organized and their dependencies on shared components like databases or user interfaces.

When services share a common database or a shared user interface, the architecture operates as a single quantum, since these shared components act as a coupling point between the services. Even though services may be developed and managed independently, the reliance on a common database or interface means they cannot be deployed or scaled entirely on their own. In this case, changes to one service may require updates or redeployment of the shared database or user interface, reducing the system’s modularity.

However, when services have independent databases and separate user interfaces, the architecture can function with multiple quanta. Each service can be deployed, scaled, and maintained independently of others, resulting in greater flexibility. This separation allows organizations to deploy new versions of individual services without affecting the rest of the system, making it easier to manage updates and optimize resources based on the specific needs of each service.

The level of independence between services—whether they share resources or operate in isolation—directly impacts the system's flexibility, scalability, and overall complexity.

Variants of Service-Based Architecture

Service-based architecture can evolve into different forms based on system requirements:

1. Microservices Architecture: While SBA involves loosely coupled services, microservices take this to an extreme, focusing on very small, atomic services that handle individual tasks. Microservices are independently deployable and typically operate with separate databases, making each service its own quantum. SBA can be considered a step towards microservices but often involves larger, more comprehensive services.

2. Domain-Driven Service-Based Architecture: In this variant, services are organized around specific business domains, ensuring that each service maps directly to a core business function. This approach is closely aligned with domain-driven design (DDD) principles.

3. Event-Driven Service-Based Architecture: In some implementations, services communicate through events rather than direct API calls. This event-driven approach further decouples services, improving scalability and allowing for asynchronous communication between components.

When to Use Service-Based Architecture

Service-based architecture is ideal for systems where scalability, modularity, and flexibility are key priorities. It works particularly well in organizations where development teams are responsible for different business functions, as it allows for independent development, deployment, and scaling of services. SBA is especially useful for applications that need to evolve over time, with new features being added or updated without affecting the entire system.

SBA is also appropriate when fault isolation is important. For systems that require high availability and reliability, the ability to isolate and handle failures at the service level can significantly improve resilience.

However, SBA may not be the best choice for smaller applications, where the overhead of managing multiple services and the complexity of inter-service communication outweigh the benefits of modularity. In such cases, a simpler monolithic architecture might be more suitable.

Event-driven architecture

Event-driven architecture (EDA) is a design pattern in which the flow of the application is determined by events. Events are state changes or actions that occur within a system, such as user interactions, system updates, or external triggers. In an event-driven architecture, components of the system communicate asynchronously through events, allowing for a more decoupled, scalable, and flexible system.

EDA is widely used in modern distributed systems, especially in scenarios where real-time processing, responsiveness, and scalability are essential. Examples include systems for e-commerce platforms, financial services, and IoT applications, where components need to react to changes quickly and efficiently.

Key Characteristics of Event-Driven Architecture

The core characteristic of EDA is that components respond to events rather than following a predetermined, linear flow of execution. In this architecture, an event is broadcast when a significant change occurs, and the system components that are interested in the event react to it. The components producing the events are called event producers, while the components consuming or responding to the events are called event consumers.

EDA systems are inherently asynchronous, meaning components can process events independently and do not block or wait for responses. This asynchronous nature makes EDA well-suited for distributed systems, as it enables more efficient resource use, faster response times, and the ability to handle spikes in demand.

Another key characteristic is loose coupling. In EDA, event producers and consumers are decoupled from each other; they do not need to know about each other’s existence. Events are communicated via an event bus or broker, which facilitates communication between components without direct dependencies. This decoupling allows for easier maintenance and evolution of the system, as components can be added, removed, or updated without affecting the entire system.

Common Components in Event-Driven Architecture

EDA typically consists of the following key components:

1. Event Producers: Event producers generate events when significant actions or changes occur. For instance, in an e-commerce platform, an event producer might generate an event when a customer places an order. Event producers are responsible only for generating events; they do not need to know which components will handle them.

2. Event Consumers: Event consumers listen for specific events and take action when they occur. In the same e-commerce example, a consumer might listen for "OrderPlaced" events and trigger the next steps, such as updating inventory or processing the payment.

3. Event Bus or Event Broker: The event bus or event broker (e.g., Kafka, RabbitMQ, AWS SNS/SQS) is responsible for transporting events between producers and consumers. It acts as an intermediary, ensuring that events are delivered to the right consumers. The event broker enables decoupling by managing the distribution of events, allowing producers and consumers to remain unaware of each other.

4. Event Store (Optional): In some EDA implementations, an event store is used to record all events that occur within the system. This event store acts as a log, providing a historical record of events that can be replayed or queried later. This is particularly useful for debugging, auditing, or recovering the state of the system after a failure.

Advantages of Event-Driven Architecture

One of the main advantages of event-driven architecture is its scalability. Since event producers and consumers operate independently, the system can scale horizontally to handle varying loads. For example, when a large number of events are generated (such as during a flash sale in an e-commerce system), consumers can be scaled up to process events in parallel without affecting the rest of the system.

EDA also enhances responsiveness. Because events are processed as they occur, the system can react in real-time to changes. This real-time processing is valuable for systems where timely reactions are critical, such as fraud detection, financial trading platforms, or IoT applications that need to respond to sensor data.

Another advantage is loose coupling, which promotes flexibility and maintainability. In an event-driven system, components are decoupled, meaning they can evolve independently. New features can be added or existing components modified without breaking the system’s functionality, as long as the events remain consistent. This decoupling also reduces the risk of cascading failures, as components are not directly dependent on each other.

EDA’s fault tolerance is another strong benefit. If an event consumer fails, the event can often be retried later, or other consumers can pick up the event. Moreover, because events are processed asynchronously, failures in one part of the system do not halt the entire system, leading to higher overall resilience.

Disadvantages of Event-Driven Architecture

While event-driven architecture provides many benefits, it also introduces complexity. One significant challenge is debugging and monitoring. Since the system is asynchronous and distributed, it can be difficult to trace the flow of events and identify where issues have occurred. Debugging an event-driven system requires specialized tools that can track event flows across the system.

Another challenge is data consistency. In event-driven systems, achieving consistency between components can be difficult, especially in scenarios that require transactions spanning multiple services. The system may need to adopt eventual consistency models, which require careful design to handle inconsistencies that may arise during processing.

EDA also introduces latency. While events are processed asynchronously, there can be delays in communication between producers and consumers, particularly in large systems. The event broker may introduce overhead, and network delays can slow the transmission of events, impacting the system’s overall performance.

Finally, complex event choreography can make the architecture harder to manage. In systems where multiple consumers depend on a sequence of events, ensuring that the right events are processed in the correct order becomes a challenge. Developers need to design systems that can handle event ordering and duplicate events, which adds to the system’s complexity.

Architecture Quanta in Event-Driven Architecture

Since the system is composed of independent event producers and consumers, each component can be viewed as its own quantum. This allows for multiple quanta, as individual producers or consumers can be developed, deployed, and scaled independently.

However, the event bus or broker typically represents a shared resource across the system, meaning that while producers and consumers may have their own quanta, they are still linked through the shared event bus. In some cases, if a critical failure occurs in the event broker, it could affect the entire system, creating a coupling point despite the independent nature of the services.

Variants of Event-Driven Architecture

EDA can be implemented in different ways depending on the needs of the system:

1. Simple Event Processing: In simple event processing, events are processed in a straightforward, single-step manner. An event occurs, and a consumer immediately processes it. This is useful for straightforward systems where events trigger immediate actions, such as updating records in a database or sending a notification.

2. Complex Event Processing (CEP): In complex event processing, multiple events are aggregated and analyzed to identify patterns or trends. CEP systems are used in scenarios such as fraud detection or monitoring systems, where multiple events may need to be correlated to trigger a response. CEP introduces additional complexity, as events are analyzed and processed based on predefined patterns.

3. Event Sourcing: In event sourcing, every change to the system’s state is represented as an event, and the state is rebuilt by replaying events from an event store. This approach is often used in systems that require a full history of changes or need to be able to rebuild their state after failures.

4. Event-Driven Microservices: Many microservices architectures incorporate event-driven principles. Each microservice acts as an event producer or consumer, and events are used to decouple microservices, allowing them to scale and evolve independently. This variant is common in cloud-native and distributed systems.

When to Use Event-Driven Architecture

Event-driven architecture is best suited for systems where real-time responsiveness, scalability, and decoupling are critical. It is ideal for systems that need to handle large volumes of data or user interactions in real-time, such as financial services, IoT platforms, and online gaming systems.

EDA is also appropriate for systems that require fault tolerance and the ability to handle failures gracefully. Its asynchronous nature and the decoupling of components make it more resilient to individual service failures, as events can be retried or reprocessed without affecting the entire system.

However, EDA may not be the best choice for systems where strict data consistency or transactional integrity is required, as it can be difficult to maintain strong consistency in a distributed, asynchronous environment. In such cases, other architectures, like service-based or layered architectures, may be more appropriate.

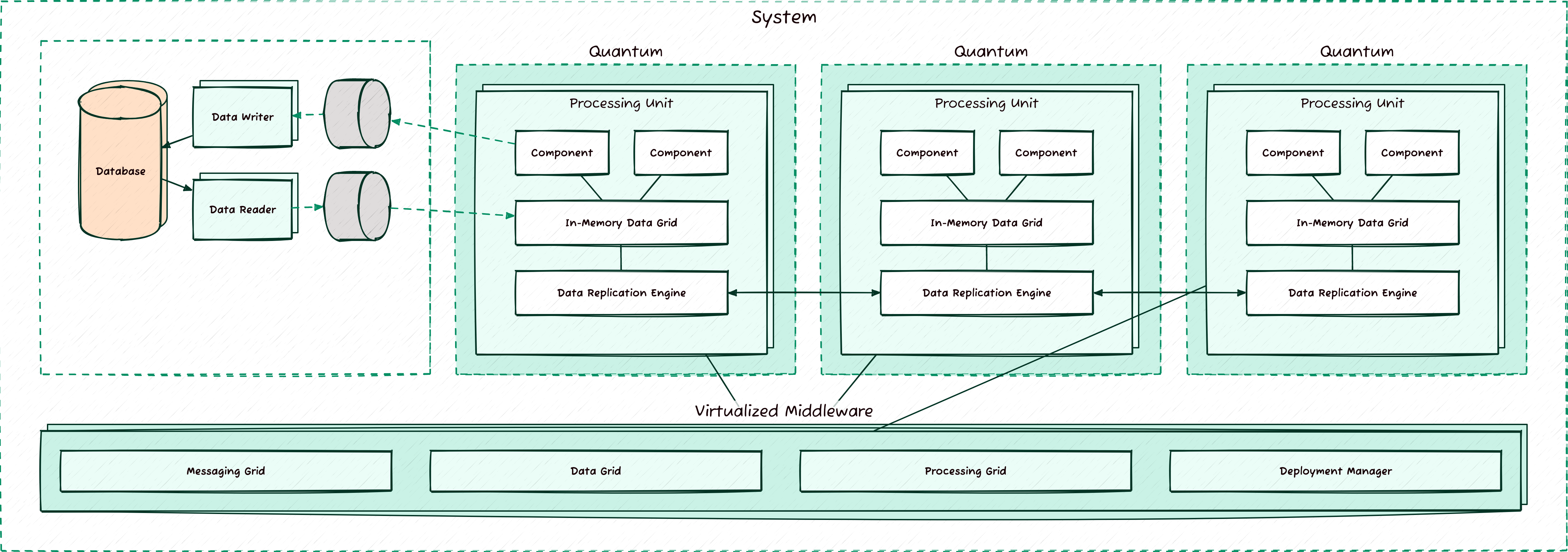

Space-based architecture

Space-based architecture is a software design pattern designed to address scalability and high availability in distributed systems. It is particularly suited for systems that experience high and unpredictable loads, as it helps eliminate bottlenecks that arise in traditional systems due to centralized databases and resource constraints. The architecture derives its name from the idea of a "space," where data and processing logic are distributed across multiple nodes, creating a grid-like structure.

In space-based architecture, the goal is to distribute both the data and processing workload across multiple nodes to ensure that no single point of failure exists and that the system can scale horizontally as demand increases. This approach is commonly used in systems that require real-time processing, such as financial trading platforms, e-commerce systems, and high-traffic websites.

Key Characteristics of Space-Based Architecture

The core characteristic of space-based architecture is data and processing distribution. In this architecture, data is distributed across multiple nodes (or spaces), with each node responsible for managing part of the system's data and processing workload. The system does not rely on a centralized database; instead, data is stored in memory across the grid, allowing for fast access and reduced latency.

Another key characteristic is shared-nothing architecture, where nodes are fully independent of each other. Each node manages its own resources (memory, CPU, etc.) and does not rely on other nodes for data or processing. This isolation ensures that nodes can be added or removed without affecting the overall system's availability or performance, allowing for horizontal scalability.

In-memory data storage is a crucial feature of space-based architecture. Instead of relying on disk-based storage, the architecture uses memory for storing data, leading to significantly faster read and write operations. This is particularly useful for applications where real-time data access is critical, such as financial systems or real-time analytics platforms.

Another defining characteristic is partitioning and replication. Data is partitioned across multiple nodes, with each node responsible for a subset of the data. To ensure high availability, the architecture replicates data across nodes, so that if one node fails, other nodes can continue processing with minimal disruption.

Common Components in Space-Based Architecture

Space-based architecture typically consists of the following key components:

1. Processing Units: These are the core units of computation, responsible for processing requests and business logic. Processing units operate independently and in parallel across the distributed nodes, allowing for greater scalability. Each processing unit handles a portion of the overall system's workload, and additional processing units can be added dynamically as needed.

2. Data Grid (or Space): The data grid, also known as the space, is where data is stored in memory and distributed across multiple nodes. The data grid ensures that data is partitioned and replicated across the system, providing fast access to data and ensuring high availability.

3. Messaging Grid: In space-based architecture, the messaging grid facilitates communication between nodes and processing units. It ensures that requests are routed to the appropriate processing unit and that nodes can communicate asynchronously. This grid-based messaging approach helps avoid bottlenecks and improves system throughput.

4. Replication Manager: The replication manager is responsible for maintaining copies of the data across multiple nodes. In the event of a node failure, the replication manager ensures that another node takes over seamlessly without data loss. Replication strategies can vary, but most involve maintaining multiple copies of critical data across different nodes.

5. Failover and Recovery Mechanism: Space-based architecture includes a built-in failover mechanism that ensures that when a node goes down, another node takes over its responsibilities. This mechanism guarantees that the system continues functioning with minimal downtime, making the architecture highly resilient.

Advantages of Space-Based Architecture

One of the key advantages of space-based architecture is scalability. The architecture is designed to scale horizontally by adding more nodes or processing units as demand increases. Since there is no central database or bottleneck, the system can handle large volumes of traffic without performance degradation. This makes it ideal for systems that experience unpredictable traffic spikes, such as e-commerce websites during sales or social media platforms during major events.

Another significant advantage is fault tolerance. Because data is replicated across multiple nodes, the system is resilient to node failures. If one node goes down, another node can take over without any data loss or system downtime. This ensures high availability, which is critical for systems that require continuous operation, such as financial systems or real-time analytics platforms.

Low latency is another benefit of space-based architecture, especially due to the use of in-memory data storage. By storing data in memory and distributing it across nodes, the system can provide near-instantaneous access to data, making it ideal for real-time applications. Additionally, the use of a messaging grid allows for fast, asynchronous communication between components, further reducing latency.

Finally, elasticity is a core advantage of space-based architecture. Nodes can be dynamically added or removed based on the system's current needs, allowing the architecture to adapt to changing workloads. This flexibility ensures that resources are used efficiently, and the system can scale up or down depending on traffic or processing requirements.

Disadvantages of Space-Based Architecture

Despite its many advantages, space-based architecture also has some drawbacks. One of the main challenges is complexity. Designing and maintaining a distributed system with partitioned and replicated data requires careful planning, especially around data consistency and synchronization between nodes. Managing the replication of data and ensuring that all nodes have the correct, up-to-date information can be difficult, particularly in large-scale systems.

Another challenge is memory constraints. Since space-based architecture relies on in-memory data storage, the amount of data that can be stored is limited by the memory available on each node. This can become a problem if the system needs to handle large datasets. To mitigate this, developers often implement strategies to offload less frequently accessed data to disk-based storage or use hybrid approaches that combine in-memory and disk storage.

Coordination and consistency can also be challenging in space-based systems. Ensuring that data remains consistent across all nodes while maintaining high performance and availability requires careful handling of replication and synchronization processes. In systems that require strong consistency, managing data across distributed nodes may introduce performance trade-offs or increased complexity.

Finally, cost can be a concern, especially in large-scale deployments. Since space-based architecture relies on maintaining data in memory across multiple nodes, it can require substantial hardware resources or cloud infrastructure. This makes it more expensive to operate compared to architectures that rely on disk-based storage or less distributed systems.

Architecture Quanta in Space-Based Architecture

In this architecture, the number of quanta can vary depending on how the system is designed.

Each processing unit in the space-based system can be treated as an individual quantum because it operates independently and can be deployed or scaled separately from other components. These units interact with the data grid and perform specific tasks, allowing them to function autonomously within the distributed system. Additionally, since the data grid is partitioned, each partition can also act as its own quantum, contributing to the overall scalability of the system.

However, since space-based architecture often relies on a shared data grid and messaging infrastructure, some degree of coupling exists between components. This means that while individual processing units and partitions can be scaled and deployed independently, they are still part of a larger, interconnected system. Therefore, the architecture can support multiple quanta, but the system's design ensures that these quanta work in harmony to provide a unified service.

Variants of Space-Based Architecture

Several variants of space-based architecture have been developed to suit different use cases:

1. In-Memory Data Grids (IMDGs): Systems like Hazelcast or Apache Ignite implement in-memory data grids where data is distributed and stored across nodes in memory. These systems focus on providing high-performance access to data by keeping it in memory, reducing latency for data-intensive applications.

2. Distributed Caching: A variant of space-based architecture is distributed caching, where frequently accessed data is cached across multiple nodes to improve performance. Solutions like Redis or Memcached implement this architecture to provide fast data access in high-traffic systems.

3. Hybrid Space-Based Architecture: In some implementations, space-based systems combine in-memory storage with persistent storage. Less critical or less frequently accessed data is stored on disk, while essential data is kept in memory for fast access. This hybrid approach balances the need for speed and data persistence.

When to Use Space-Based Architecture

Space-based architecture is particularly well-suited for systems that experience high and unpredictable traffic. This includes e-commerce platforms, social media applications, and online gaming systems, where traffic can spike suddenly and unpredictably. The architecture's ability to scale dynamically and handle large loads makes it ideal for these scenarios.

It is also a strong choice for real-time processing systems, such as financial trading platforms, IoT applications, or real-time analytics systems, where low-latency data access and processing are critical. The in-memory data storage and distributed processing units ensure that data can be accessed and processed quickly.

Additionally, space-based architecture is a good fit for applications that require high availability and fault tolerance. Systems that cannot afford downtime—such as critical financial or healthcare systems—can benefit from the architecture's resilience to node failures and its ability to continue functioning even when parts of the system go down.

Service-oriented architecture

Service-Oriented Architecture (SOA) is a software design pattern where components of a system are organized as services, each providing a specific piece of business functionality. In SOA, services communicate with each other over a network, typically through well-defined protocols such as HTTP, SOAP, or REST, allowing them to function independently while collectively achieving the goals of the system. SOA emphasizes reusability, interoperability, and loose coupling between services, making it ideal for building large, distributed systems that integrate different technologies, platforms, and business processes.

SOA was widely adopted in enterprise systems before the rise of microservices and remains a valuable architecture for systems that need to integrate disparate applications, often across different organizations. Its flexibility and emphasis on service reuse help businesses adapt to evolving needs, making SOA a strong choice for complex, enterprise-level applications.

Key Characteristics of Service-Oriented Architecture

SOA is built around the idea of services as reusable components that provide business functionality through well-defined interfaces. Each service encapsulates a particular set of business rules and logic, such as customer management, payment processing, or inventory control. These services can be consumed by other services or applications, enabling a high degree of reuse across systems.

One of the primary characteristics of SOA is interoperability. Services in SOA are designed to work across different platforms, programming languages, and technologies. This is achieved by using standardized communication protocols such as SOAP or REST, which ensure that services can communicate seamlessly, regardless of the underlying implementation. Interoperability is critical in SOA because it allows organizations to integrate legacy systems, third-party applications, and new developments into a unified architecture.

Another important feature of SOA is loose coupling. In SOA, services are designed to interact with each other without being tightly dependent on one another. Each service has a well-defined interface, typically described in terms of a WSDL(Web Services Description Language) document for SOAP-based services or an API specification for RESTful services. This loose coupling means that changes in one service (as long as the interface remains stable) do not affect the functioning of other services.

SOA also promotes service reuse. Since services are modular and provide specific functionality, they can be reused across different applications or business processes. For example, an authentication service developed for one application can be reused in multiple systems, saving development time and ensuring consistency across different parts of the organization.

Common Components in Service-Oriented Architecture

SOA systems are made up of various components that work together to deliver services and manage their interactions:

1. Services: The primary building blocks in SOA are the services themselves. These are independent, self-contained units that provide business functionality through standardized interfaces. Services can range from simple data access services to complex business process orchestration services. In an e-commerce system, services might include order processing, payment handling, and customer management.

2. Service Contract: Each service in SOA is defined by a service contract, which specifies the input and output of the service, as well as the communication protocols it supports. This contract provides the interface through which other services or applications can interact with the service, ensuring that all components in the system communicate consistently.

3. Service Bus (Enterprise Service Bus - ESB): The Enterprise Service Bus (ESB) is a crucial component in SOA systems. It serves as the central hub for communication between services, allowing them to interact in a decoupled manner. The ESB manages message routing, transformation, and protocol mediation between services, enabling them to communicate even if they use different protocols or data formats. ESBs often handle additional responsibilities like message queuing, service orchestration, and error handling.

4. Service Registry: A service registry acts as a directory for all available services in the system. It allows services to discover and communicate with each other dynamically. The registry keeps track of the service contracts, locations, and availability, helping ensure that services can be located and consumed by other parts of the system.

5. Orchestration Engine: In some SOA implementations, an orchestration engine is used to coordinate the execution of multiple services in a defined sequence to achieve a business goal. This is commonly seen in Business Process Execution Language (BPEL) systems, where complex workflows are created by chaining together multiple services.

Advantages of Service-Oriented Architecture

One of the key advantages of SOA is its reusability. Services are designed to be modular and self-contained, which means they can be reused across different applications or business processes. This reuse leads to reduced development costs, faster time-to-market for new applications, and improved consistency across systems.

SOA also offers interoperability, allowing services to communicate across different platforms, languages, and technologies. This makes it an ideal architecture for integrating legacy systems, third-party software, or applications developed in different environments. Interoperability is especially important in large enterprises where systems often span multiple departments or geographic locations.

Loose coupling is another significant benefit. Since services interact with each other through well-defined interfaces, they remain independent of each other’s internal implementations. This allows services to be updated or modified without impacting the rest of the system, making SOA systems more flexible and adaptable to change.

SOA also supports scalability. By distributing functionality across multiple services, organizations can scale individual services based on demand. For example, if a payment processing service experiences a surge in traffic, it can be scaled independently without affecting the performance of other services in the system.

Fault isolation is another advantage of SOA. If one service fails, it does not necessarily bring down the entire system. The ESB can manage fault handling, retrying messages, or routing requests to fallback services, ensuring that the system remains operational even in the face of failures.

Disadvantages of Service-Oriented Architecture

Despite its benefits, SOA introduces certain complexities. One major challenge is the overhead of managing services. Because SOA systems involve multiple independent services, managing their deployment, monitoring, and security can become complicated. The more services an organization has, the more effort is required to ensure they are functioning correctly, which can increase operational costs.

Another challenge is performance overhead. Communication between services in SOA often occurs over a network, which can introduce latency compared to direct method calls within a monolithic system. The use of the ESB for message routing and transformation can also add additional processing time, especially if services need to convert between different protocols or data formats.

Service governance is another significant concern in SOA. As the number of services grows, it becomes difficult to manage service contracts, versioning, and access control. Without proper governance, maintaining consistency and ensuring that services adhere to organizational standards can become problematic.

Additionally, data consistency can be a challenge in SOA. Since services typically operate independently and may have their own databases, ensuring consistency across services can be difficult. Distributed transactions are complex and can introduce latency, so SOA systems often need to adopt alternative consistency models, such as eventual consistency.

Architecture Quanta in Service-Oriented Architecture

In SOA, the concept of architecture quanta is typically based on individual services. Each service operates as its own quantum, meaning it can be developed, deployed, and scaled independently. This allows for multiple quanta, where each service is its own independent unit, contributing to the overall modularity and scalability of the system.

However, if services rely heavily on a centralized Enterprise Service Bus (ESB) for communication, there can be some coupling between services, especially when message routing and transformations are handled centrally. This means that while each service can be deployed independently, the reliance on the ESB can introduce a degree of dependency, limiting the flexibility in how services are scaled and managed. In such cases, the ESB can act as a central quantum, linking the services into a more unified architecture.

Variants of Service-Oriented Architecture

Several variants and adaptations of SOA exist, depending on the specific needs of the system:

1. Microservices Architecture: While SOA focuses on larger, reusable services, microservices take this concept further by breaking down services into smaller, more granular units. Each microservice is independently deployable and has its own database, making microservices architecture more decentralized than traditional SOA. Microservices can be seen as an evolution of SOA, particularly in cloud-native applications.

2. Event-Driven SOA: In some implementations, SOA is combined with event-driven architecture (EDA)principles, where services communicate asynchronously via events rather than direct API calls. This approach decouples services even further and improves system responsiveness and scalability.

3. Cloud-based SOA: With the rise of cloud computing, many SOA implementations are now deployed in cloud environments, where services can take advantage of cloud infrastructure to scale dynamically. Cloud-based SOA leverages the flexibility of cloud platforms to optimize resource use and ensure high availability.

When to Use Service-Oriented Architecture

SOA is particularly well-suited for large enterprise systems that need to integrate various applications, technologies, or legacy systems. It is ideal for organizations that require reusability and interoperability across different parts of the business. SOA is also a strong choice for systems where multiple teams or departments need to develop services independently but still need to communicate and share functionality.

SOA is also useful in environments where scalability is critical. By distributing functionality across multiple services, organizations can scale individual services based on demand without affecting the rest of the system. This makes SOA a good fit for high-traffic systems, such as e-commerce platforms, financial services, and enterprise resource planning (ERP) systems.

However, for smaller systems or applications with less complex integration needs, SOA may introduce unnecessary overhead. In these cases, a simpler architecture, such as a monolithic or layered architecture, might be more appropriate.

Microservices architecture

Microservices architecture is a modern software design pattern that structures an application as a collection of small, loosely coupled, independently deployable services. Each service in a microservices architecture performs a specific business function and communicates with other services over lightweight protocols, usually through HTTP-based APIs or messaging systems. This architecture is designed to address the challenges of large, monolithic systems by breaking them down into smaller, more manageable components that can be developed, deployed, and scaled independently.

Microservices architecture has become popular in cloud-native and distributed systems, offering greater flexibility, scalability, and agility compared to traditional monolithic architectures. It is commonly used in systems where rapid development, continuous delivery, and scalability are critical, such as e-commerce platforms, financial services, and large-scale web applications.

Key Characteristics of Microservices Architecture

One of the defining characteristics of microservices architecture is independent deployability. Each microservice is designed to function as a separate, standalone unit, which can be developed, tested, deployed, and scaled independently of other services. This independence allows teams to work autonomously, reducing dependencies and improving development speed.

Microservices are also loosely coupled. Each service is responsible for a specific piece of functionality, such as payment processing, user authentication, or product catalog management. These services interact with each other through well-defined APIs, usually via HTTP-based RESTful APIs or messaging systems like RabbitMQ or Apache Kafka. This loose coupling ensures that changes to one service do not directly affect other services, improving overall system flexibility and maintainability.

Another key characteristic of microservices is single responsibility. Each service is designed around a single business capability, adhering to the single responsibility principle (SRP). This makes services easier to understand, develop, and maintain. Since each service performs a specific function, the architecture is more modular, allowing teams to update or replace individual services without disrupting the entire system.

Microservices architecture also emphasizes polyglot development. Since each microservice is independent, teams can choose different programming languages, databases, and technology stacks for different services. This allows for greater flexibility in choosing the right tools for each job, enhancing performance, scalability, and maintainability.

Common Components in Microservices Architecture

A microservices-based system consists of several key components that work together to create a highly modular and scalable architecture:

1. Microservices: The individual, autonomous services that perform specific business functions. Each microservice has its own business logic, database, and interface for interacting with other services. For example, in an e-commerce system, there might be separate services for managing inventory, processing orders, and handling customer data.

2. API Gateway: The API gateway acts as a central entry point for client requests to the microservices. It handles request routing, composition, and authentication. The API gateway simplifies the client’s interactions with the system by providing a unified interface, while hiding the complexity of multiple underlying services.

3. Service Discovery: In a microservices system, services are often deployed across dynamic environments (e.g., in containers on the cloud). Service discovery mechanisms, such as Consul, Eureka, or Kubernetes, allow services to dynamically register themselves and discover other services at runtime. This ensures that services can find and communicate with each other without hardcoded endpoints.

4. Database per Service: One of the defining features of microservices is that each service typically has its own dedicated database, allowing it to manage its own data independently. This approach ensures loose coupling between services at the data layer, enabling each service to evolve without impacting others. However, in some cases, services might need to share data, which requires careful design to maintain consistency.

5. Message Broker: In systems that require asynchronous communication, a message broker like RabbitMQ or Kafka is used to facilitate communication between services. This helps decouple services even further by allowing them to communicate through events or messages without waiting for immediate responses.

6. Monitoring and Logging: Given the distributed nature of microservices, monitoring and logging are essential for understanding system health, tracking service interactions, and diagnosing issues. Tools like Prometheus, Grafana, and ELK stack (Elasticsearch, Logstash, Kibana) are commonly used to monitor and visualize the performance and logs of microservices.

Advantages of Microservices Architecture

One of the main advantages of microservices architecture is scalability. Since each service is an independent component, it can be scaled individually based on its workload. For example, an authentication service might experience more traffic than an order management service and can therefore be scaled independently. This granularity in scaling improves resource efficiency and reduces operational costs.

Another advantage is faster development and deployment. Microservices allow development teams to work independently on different services, reducing the need for coordination across teams. This leads to faster development cycles and continuous delivery, where new features or updates can be released without affecting other parts of the system.

Microservices also enhance fault isolation. Since services are loosely coupled, failures in one service do not necessarily bring down the entire system. For example, if the payment service fails, other services like product catalog or customer management can continue functioning. This fault isolation makes microservices more resilient to failures and easier to troubleshoot.

Microservices encourage polyglot development, allowing teams to choose the best technology stack for each service. This flexibility means that services can be written in different programming languages or use different databases, optimizing each service based on its unique requirements.

Disadvantages of Microservices Architecture

While microservices offer many benefits, they also introduce certain challenges. One major issue is the complexity of managing multiple services. In large systems, managing the deployment, monitoring, and coordination of dozens or hundreds of services can become complex. Ensuring that services communicate correctly, handling failures, and maintaining consistency across services requires robust infrastructure and automation tools.

Another challenge is data consistency. Since each service typically manages its own database, maintaining consistency across services can be difficult, especially in systems that require strong transactional integrity. Distributed systems often adopt eventual consistency models, which can complicate the system’s design and require careful handling of conflicts or delays in data synchronization.

Microservices can also introduce performance overhead due to the need for inter-service communication over a network. Every API call between services adds latency, and the more granular the services are, the more communication overhead the system will incur. This overhead can affect system performance, especially in systems that require low-latency processing.

Testing microservices can be more complicated than testing a monolithic system. With multiple services interacting over networks, integration testing, end-to-end testing, and debugging can become challenging, as issues may arise from the interactions between services rather than within a single service.

Architecture Quanta in Microservices Architecture

In microservices architecture, the concept of architecture quanta applies at the level of each individual microservice. Each microservice operates as its own quantum, meaning it can be independently developed, deployed, and scaled. This allows for multiple quanta, where each microservice is a fully independent, self-contained unit that contributes to the larger system.

This granular approach to deployment and scaling is one of the key advantages of microservices. Teams can release new versions of services without affecting the rest of the system, and services can be scaled individually based on their specific performance needs. The multiple quanta approach enhances agility, allowing organizations to iterate quickly and respond to changes in business requirements.

Variants of Microservices Architecture

Several variations of microservices architecture have emerged, depending on specific system requirements:

1. Event-Driven Microservices: In this variant, microservices communicate asynchronously via events rather than direct API calls. This approach decouples services even further, improving scalability and fault tolerance. Tools like Kafka or RabbitMQ are often used to handle event-driven communication.

2. Serverless Microservices: In serverless microservices, services are deployed as functions on cloud platforms (e.g., AWS Lambda, Azure Functions) and executed in response to events. This approach allows for more fine-grained scaling and reduces operational overhead, as the cloud provider manages the infrastructure.

3. Containerized Microservices: In containerized environments, microservices are deployed as lightweight, portable containers (using tools like Docker or Kubernetes). Containers encapsulate the service’s code, dependencies, and environment, allowing for consistency across different deployment environments.

When to Use Microservices Architecture

Microservices architecture is particularly well-suited for large-scale, distributed systems where flexibility, scalability, and rapid development cycles are critical. It is ideal for organizations that need to deploy updates frequently, operate in dynamic environments, or handle varying loads across different parts of the system.

Microservices are also a good fit for teams that want to adopt continuous integration and continuous delivery (CI/CD) practices, as the architecture allows for independent deployments of individual services. This makes it easier to release updates and new features without disrupting other services.

However, for smaller applications or systems with simpler requirements, microservices might introduce unnecessary complexity. In these cases, a monolithic or service-based architecture may be more appropriate.

Conclusion

As systems grow in complexity, maintaining a structured and well-defined architecture becomes essential to avoid the pitfalls of a disorganized, chaotic system, often referred to as a “Big Ball of Mud.” Such systems, which lack clear modularity and separation of concerns, quickly become unmanageable and lead to technical debt, poor performance, and difficulties in scaling.

One of the core concepts across these architectures is the notion of architectural quantum, which represents the smallest independently deployable and scalable unit in a system. In monolithic architectures, the entire system operates as a single quantum, meaning any change or update requires redeployment of the entire application, limiting flexibility. In contrast, distributed architectures like microservices, service-based, and event-driven systems consist of multiple quanta, where each service, component, or event handler can be developed, deployed, and scaled independently. This modularity enables greater adaptability, allowing different parts of the system to evolve without disrupting other components.

The choice of software architecture is a critical factor in shaping the overall design, scalability, and maintainability of a system. Ultimately, the choice of architecture should align with both the technical requirements of the project and the long-term business goals. For smaller, simpler systems, a monolithic or layered architecture may suffice, providing simplicity and ease of development. For larger, more complex, and distributed systems that need to handle high volumes of traffic, frequent updates, or diverse business domains, distributed architectures like microservices, event-driven systems, or space-based architectures provide the scalability, flexibility, and resilience required to ensure long-term success. By leveraging the right architectural patterns, teams can build robust systems that meet the demands of modern software development, ensuring they can evolve and adapt as technology and business requirements change.
