Service-Oriented Architecture
Software architecture
Service-Oriented Architecture (SOA) is a software design pattern where components of a system are organized as services, each providing a specific piece of business functionality. In SOA, services communicate with each other over a network, typically through well-defined protocols such as HTTP, SOAP, or REST, allowing them to function independently while collectively achieving the goals of the system. SOA emphasizes reusability, interoperability, and loose coupling between services, making it ideal for building large, distributed systems that integrate different technologies, platforms, and business processes.
Invite a friend & score a $50 voucher! 🎉
Together, we’ve built an incredible community, and now… it’s time to grow it even bigger!
SOA was widely adopted in enterprise systems before the rise of microservices and remains a valuable architecture for systems that need to integrate disparate applications, often across different organizations. Its flexibility and emphasis on service reuse help businesses adapt to evolving needs, making SOA a strong choice for complex, enterprise-level applications.
Key Characteristics of Service-Oriented Architecture
SOA is built around the idea of services as reusable components that provide business functionality through well-defined interfaces. Each service encapsulates a particular set of business rules and logic, such as customer management, payment processing, or inventory control. These services can be consumed by other services or applications, enabling a high degree of reuse across systems.
One of the primary characteristics of SOA is interoperability. Services in SOA are designed to work across different platforms, programming languages, and technologies. This is achieved by using standardized communication protocols such as SOAP or REST, which ensure that services can communicate seamlessly, regardless of the underlying implementation. Interoperability is critical in SOA because it allows organizations to integrate legacy systems, third-party applications, and new developments into a unified architecture.
Another important feature of SOA is loose coupling. In SOA, services are designed to interact with each other without being tightly dependent on one another. Each service has a well-defined interface, typically described in terms of a WSDL(Web Services Description Language) document for SOAP-based services or an API specification for RESTful services. This loose coupling means that changes in one service (as long as the interface remains stable) do not affect the functioning of other services.
SOA also promotes service reuse. Since services are modular and provide specific functionality, they can be reused across different applications or business processes. For example, an authentication service developed for one application can be reused in multiple systems, saving development time and ensuring consistency across different parts of the organization.
Common Components in Service-Oriented Architecture
SOA systems are made up of various components that work together to deliver services and manage their interactions:
Services: The primary building blocks in SOA are the services themselves. These are independent, self-contained units that provide business functionality through standardized interfaces. Services can range from simple data access services to complex business process orchestration services. In an e-commerce system, services might include order processing, payment handling, and customer management.
Service Contract: Each service in SOA is defined by a service contract, which specifies the input and output of the service, as well as the communication protocols it supports. This contract provides the interface through which other services or applications can interact with the service, ensuring that all components in the system communicate consistently.
Service Bus (Enterprise Service Bus - ESB): The Enterprise Service Bus (ESB) is a crucial component in SOA systems. It serves as the central hub for communication between services, allowing them to interact in a decoupled manner. The ESB manages message routing, transformation, and protocol mediation between services, enabling them to communicate even if they use different protocols or data formats. ESBs often handle additional responsibilities like message queuing, service orchestration, and error handling.
Service Registry: A service registry acts as a directory for all available services in the system. It allows services to discover and communicate with each other dynamically. The registry keeps track of the service contracts, locations, and availability, helping ensure that services can be located and consumed by other parts of the system.
Orchestration Engine: In some SOA implementations, an orchestration engine is used to coordinate the execution of multiple services in a defined sequence to achieve a business goal. This is commonly seen in Business Process Execution Language (BPEL) systems, where complex workflows are created by chaining together multiple services.
Advantages of Service-Oriented Architecture
One of the key advantages of SOA is its reusability. Services are designed to be modular and self-contained, which means they can be reused across different applications or business processes. This reuse leads to reduced development costs, faster time-to-market for new applications, and improved consistency across systems.
SOA also offers interoperability, allowing services to communicate across different platforms, languages, and technologies. This makes it an ideal architecture for integrating legacy systems, third-party software, or applications developed in different environments. Interoperability is especially important in large enterprises where systems often span multiple departments or geographic locations.
Loose coupling is another significant benefit. Since services interact with each other through well-defined interfaces, they remain independent of each other’s internal implementations. This allows services to be updated or modified without impacting the rest of the system, making SOA systems more flexible and adaptable to change.
SOA also supports scalability. By distributing functionality across multiple services, organizations can scale individual services based on demand. For example, if a payment processing service experiences a surge in traffic, it can be scaled independently without affecting the performance of other services in the system.
Fault isolation is another advantage of SOA. If one service fails, it does not necessarily bring down the entire system. The ESB can manage fault handling, retrying messages, or routing requests to fallback services, ensuring that the system remains operational even in the face of failures.
Disadvantages of Service-Oriented Architecture
Despite its benefits, SOA introduces certain complexities. One major challenge is the overhead of managing services. Because SOA systems involve multiple independent services, managing their deployment, monitoring, and security can become complicated. The more services an organization has, the more effort is required to ensure they are functioning correctly, which can increase operational costs.
Another challenge is performance overhead. Communication between services in SOA often occurs over a network, which can introduce latency compared to direct method calls within a monolithic system. The use of the ESB for message routing and transformation can also add additional processing time, especially if services need to convert between different protocols or data formats.
Service governance is another significant concern in SOA. As the number of services grows, it becomes difficult to manage service contracts, versioning, and access control. Without proper governance, maintaining consistency and ensuring that services adhere to organizational standards can become problematic.
Additionally, data consistency can be a challenge in SOA. Since services typically operate independently and may have their own databases, ensuring consistency across services can be difficult. Distributed transactions are complex and can introduce latency, so SOA systems often need to adopt alternative consistency models, such as eventual consistency.

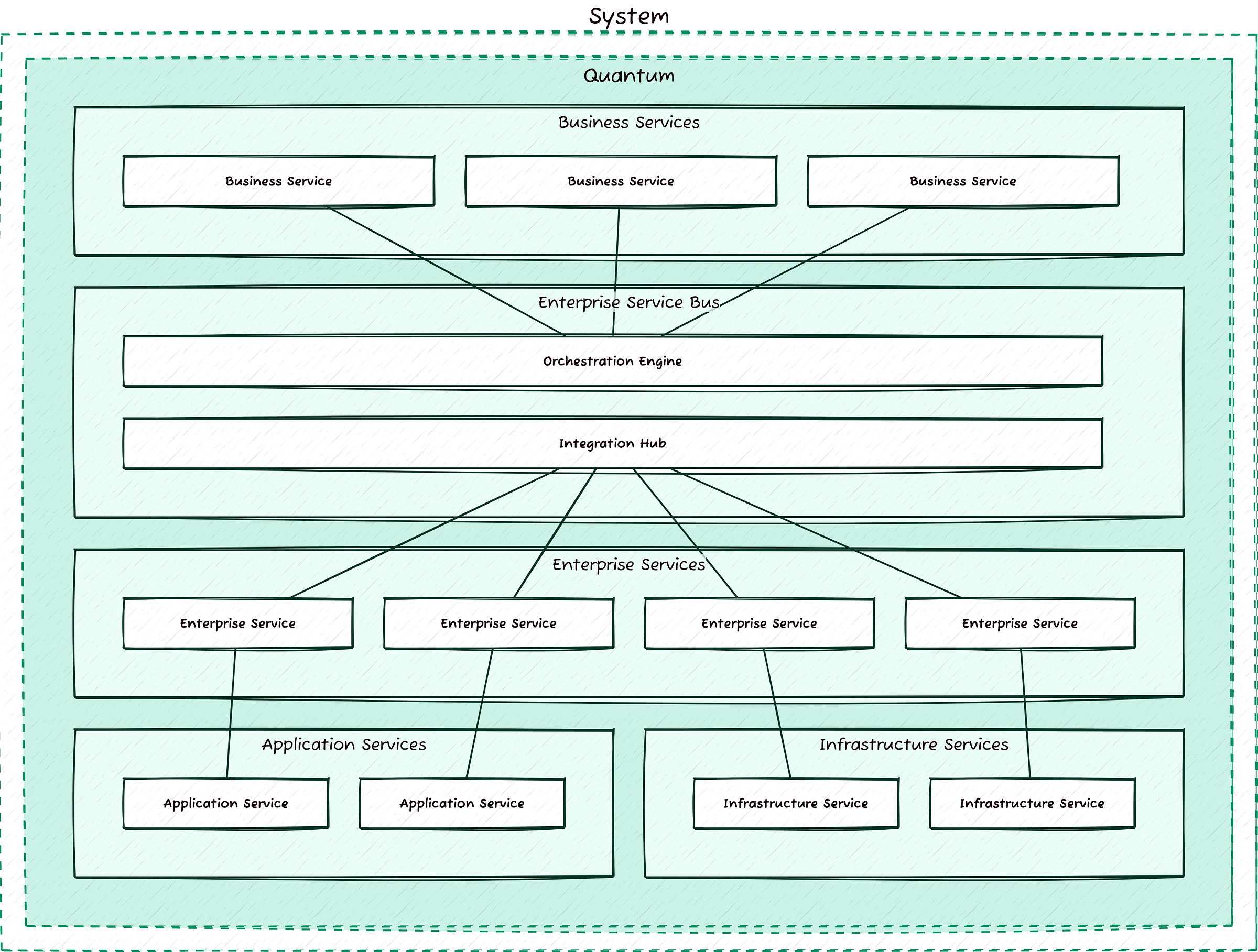

Architecture Quanta in Service-Oriented Architecture
In SOA, the concept of architecture quanta is typically based on individual services. Each service operates as its own quantum, meaning it can be developed, deployed, and scaled independently. This allows for multiple quanta, where each service is its own independent unit, contributing to the overall modularity and scalability of the system.
However, if services rely heavily on a centralized Enterprise Service Bus (ESB) for communication, there can be some coupling between services, especially when message routing and transformations are handled centrally. This means that while each service can be deployed independently, the reliance on the ESB can introduce a degree of dependency, limiting the flexibility in how services are scaled and managed. In such cases, the ESB can act as a central quantum, linking the services into a more unified architecture.
Variants of Service-Oriented Architecture
Several variants and adaptations of SOA exist, depending on the specific needs of the system:
Microservices Architecture: While SOA focuses on larger, reusable services, microservices take this concept further by breaking down services into smaller, more granular units. Each microservice is independently deployable and has its own database, making microservices architecture more decentralized than traditional SOA. Microservices can be seen as an evolution of SOA, particularly in cloud-native applications.
Event-Driven SOA: In some implementations, SOA is combined with event-driven architecture (EDA)principles, where services communicate asynchronously via events rather than direct API calls. This approach decouples services even further and improves system responsiveness and scalability.
Cloud-based SOA: With the rise of cloud computing, many SOA implementations are now deployed in cloud environments, where services can take advantage of cloud infrastructure to scale dynamically. Cloud-based SOA leverages the flexibility of cloud platforms to optimize resource use and ensure high availability.
Summary
SOA is particularly well-suited for large enterprise systems that need to integrate various applications, technologies, or legacy systems. It is ideal for organizations that require reusability and interoperability across different parts of the business. SOA is also a strong choice for systems where multiple teams or departments need to develop services independently but still need to communicate and share functionality.
SOA is also useful in environments where scalability is critical. By distributing functionality across multiple services, organizations can scale individual services based on demand without affecting the rest of the system. This makes SOA a good fit for high-traffic systems, such as e-commerce platforms, financial services, and enterprise resource planning (ERP) systems.
However, for smaller systems or applications with less complex integration needs, SOA may introduce unnecessary overhead. In these cases, a simpler architecture, such as a monolithic or layered architecture, might be more appropriate.
